作者: 鄧記 時間: 2023-7-9 21:52 標題: Benz W204 C200 turbo 油喉漏油
本帖最後由 鄧記 於 2023-7-9 22:00 編輯

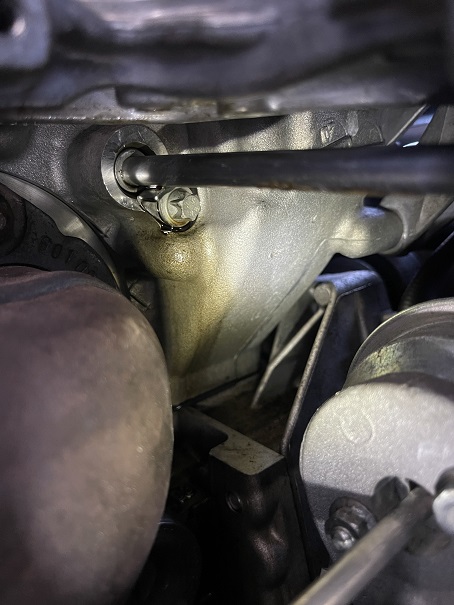

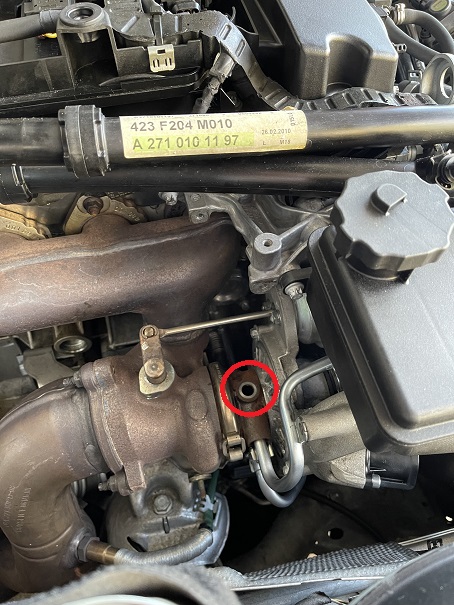

發覺漏油已有大半年,只知係turbo附近漏油。近來嚴重咗,滴到落地。Google話最有可能係turbo油喉。拆開heat shield睇吓,真係呢度漏。
更換方法YT有好多,唔重覆嘞。

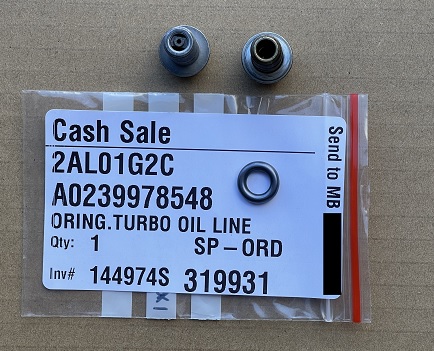

新 O ring,新同舊banjo bolts

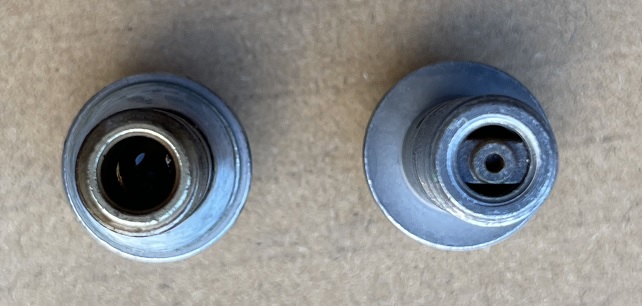

新舊banjo bolts,新嘅bolt入面有valve,幾貴吓
拆咗油喉
[

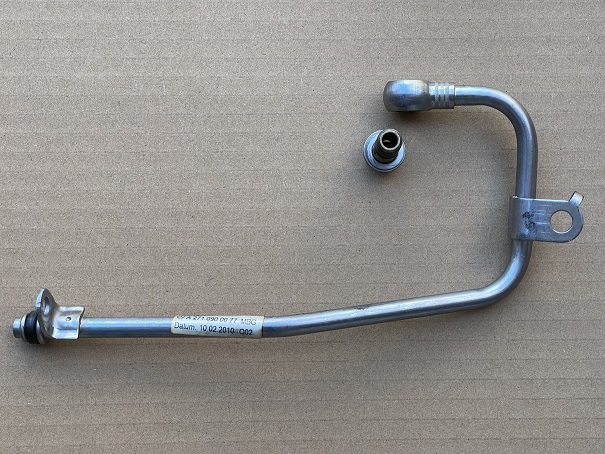

油喉同banjo bolt

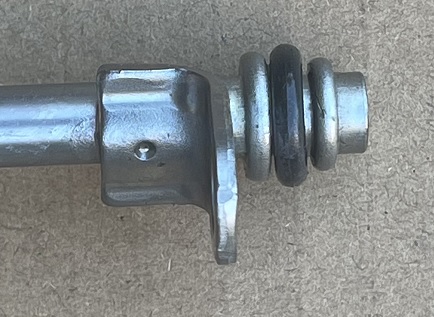

舊O ring

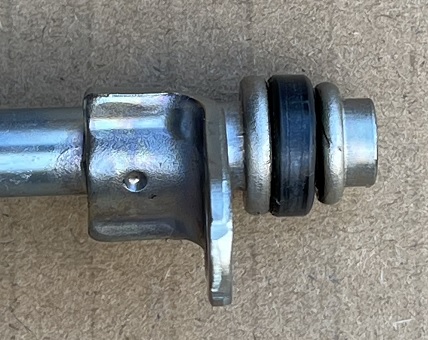

新O ring
網上買應該平好多,dealer第二日有貨,呢個周末做咗兩個半日,最花時間係拆heat shield。
https://h0.hkepc.com/forum/attachment.php?aid=2380259&k=c6139723a7c11a6cc5171b8be86589cb&t=1781144226&sid=WmceLfX5uI

https://h0.hkepc.com/forum/attachment.php?aid=2380260&k=f2e67c181152bd775849f5cd07745458&t=1781144226&sid=WmceLfX5uI

https://h0.hkepc.com/forum/attachment.php?aid=2380261&k=5a3d5a2016dd95e740bbf2efb471b684&t=1781144226&sid=WmceLfX5uI

https://h0.hkepc.com/forum/attachment.php?aid=2380262&k=053390a3bb839e730c870e6ab5c9e95f&t=1781144226&sid=WmceLfX5uI

https://h0.hkepc.com/forum/attachment.php?aid=2380263&k=31d09eff1e1b9b63c97ceca5b8f89e90&t=1781144226&sid=WmceLfX5uI

https://h0.hkepc.com/forum/attachment.php?aid=2380264&k=f6242f6b04b26a4c7a9036618ceeea4c&t=1781144226&sid=WmceLfX5uI

https://h0.hkepc.com/forum/attachment.php?aid=2380265&k=0538677e4b813e61a56ca5ca2cb78795&t=1781144226&sid=WmceLfX5uI

https://h0.hkepc.com/forum/attachment.php?aid=2380267&k=2b0dc11dc80b959a6ae3007d6219470b&t=1781144226&sid=WmceLfX5uI

作者: 得得地 時間: 2023-7-9 22:33
本帖最後由 得得地 於 2024-3-17 14:31 編輯
提示: 作者被禁止或刪除 內容自動屏蔽
作者: seelaifang 時間: 2023-7-11 04:39
作者: PPLd 時間: 2023-7-11 08:52
Impressive.
We need more people like you in the World.
Thanks.
